Description:

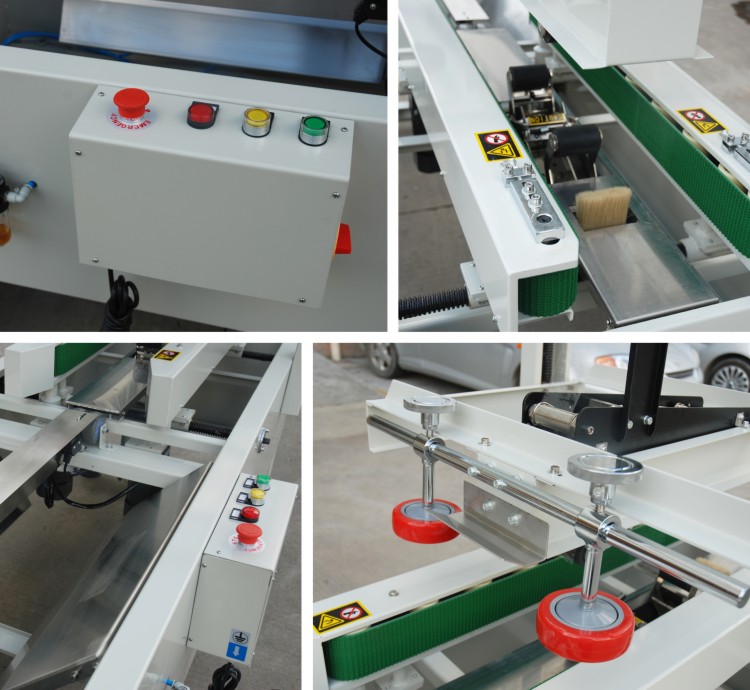

After the carton being opened manually, DZF-A semiautomatic bottom flap carton sealer can fold bottom flaps automatically, then the carton will be filled manually, at last the machine will seal both bottom and up flaps automatically. The machine can be equipped into production line.
Parameters:
After the carton being opened manually, DZF-A semiautomatic bottom flap carton sealer can fold bottom flaps automatically, then the carton will be filled manually, at last the machine will seal both bottom and up flaps automatically. The machine can be equipped into production line.
Parameters:
DZF-5050A | |
Voltage (V/Hz) | AC 220/50 110/60 |
Power (W) | 180 |
Air Compressor (Mpa) | 0.5~0.6 |
Speed (m/min) | 22 m/min(10 cartons/min) |
Max. Carton Size (L×W×H)(mm) | 600×500×400 |
Min. Carton Size (L×W×H)(mm) | 200×160×110 |
Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
Width of Adhesive Tape (mm) | 48,60,76(optional) |
External Dimensions (L×W× H)(mm) | 2200×860×1700 |
Net Weight (kg) | 280 |
