Brief Introduction:
1.1 Suitable material: Flowable fluid such as detergent, liquid soap, hand wash, lotion, shampoo etc.

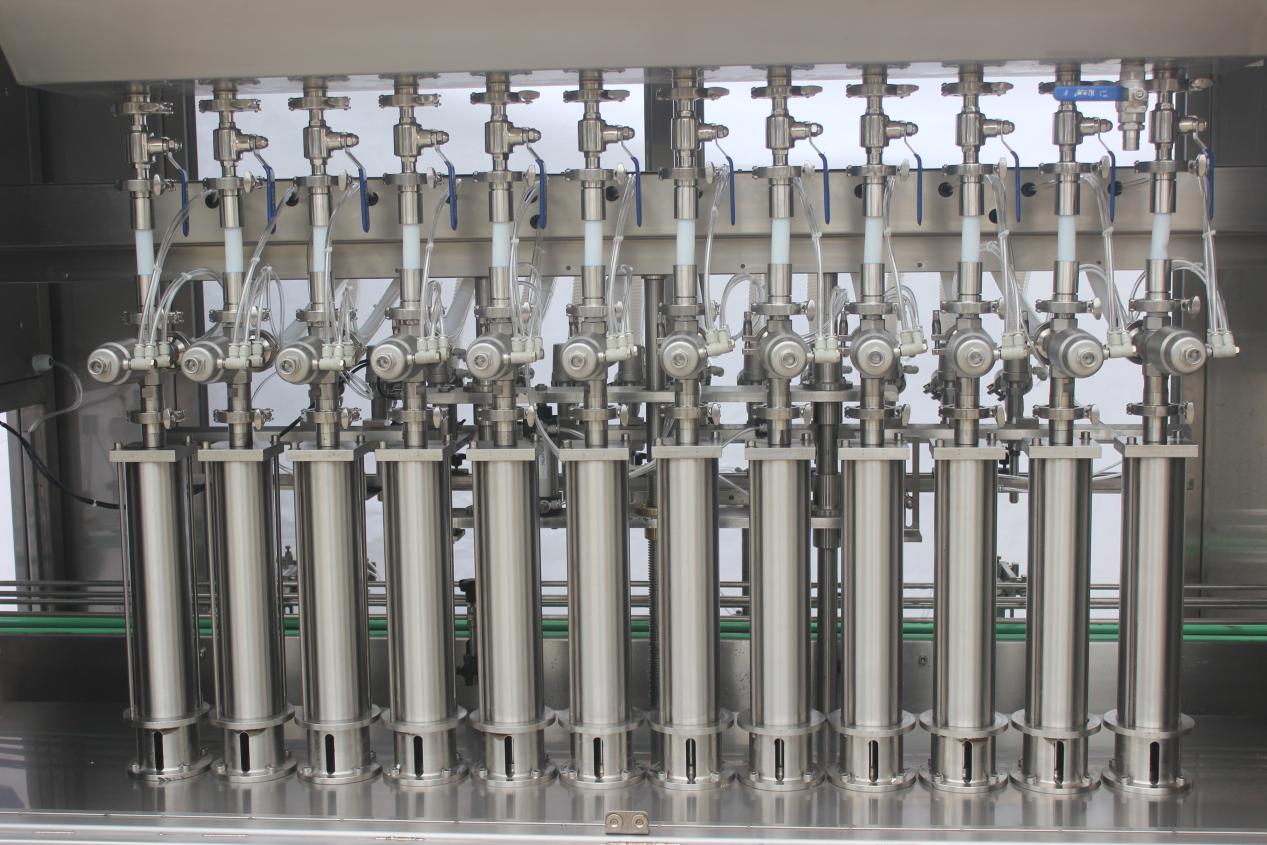

1.2 This filling machine is a high-tech filling equipment controlled by PLC, equip with photo electricity instruction and pneumatic action.
1.3 Accurate measurement: adopt servo motor to drive dosing system, ensure the piston can always reaches constant position.
1.4 When close to target filling capacity can be applied to realize speed slow filling to avoid liquid splash out of bottle mouth.
1.5 Convenient adjustment: Parameter setting of filling is on the touch screen.
1.6 Can make machine with 4/6/8/10/12/16 head for different capacity.
1.7 With liquid receiving tray under filling nozzle in case any leakage from nozzles.
1.8 316 stainless steel product contact parts for high resistance of chemical products.
1.9 Product hopper is made with level sensor for automatic product feeding
2.0 Product dosing system is made with clean in place function, no need to open the dosing cylinder to clean for thin liquid.
Parameters
Brief Introduction:
1.1 Suitable material: Flowable fluid such as detergent, liquid soap, hand wash, lotion, shampoo etc.
1.2 This filling machine is a high-tech filling equipment controlled by PLC, equip with photo electricity instruction and pneumatic action.
1.3 Accurate measurement: adopt servo motor to drive dosing system, ensure the piston can always reaches constant position.
1.4 When close to target filling capacity can be applied to realize speed slow filling to avoid liquid splash out of bottle mouth.
1.5 Convenient adjustment: Parameter setting of filling is on the touch screen.
1.6 Can make machine with 4/6/8/10/12/16 head for different capacity.
1.7 With liquid receiving tray under filling nozzle in case any leakage from nozzles.
1.8 316 stainless steel product contact parts for high resistance of chemical products.
1.9 Product hopper is made with level sensor for automatic product feeding
2.0 Product dosing system is made with clean in place function, no need to open the dosing cylinder to clean for thin liquid.
Parameters
| Item | Technical Data |
| Filling Head | 4 |
| Capacity |
800-1500pcs/Hour (Depend on filling volume) |
| Filling Range | 500-5000ml |
| Accuracy | ±0.5% |
| Power | 3 KW |
| Voltage | 220V 50HZ |
| Weight | 1200KG |
| Dimension | 2400*900*2000MM |
